Ball Top Monitor Hit and Miss Engine B01 engines

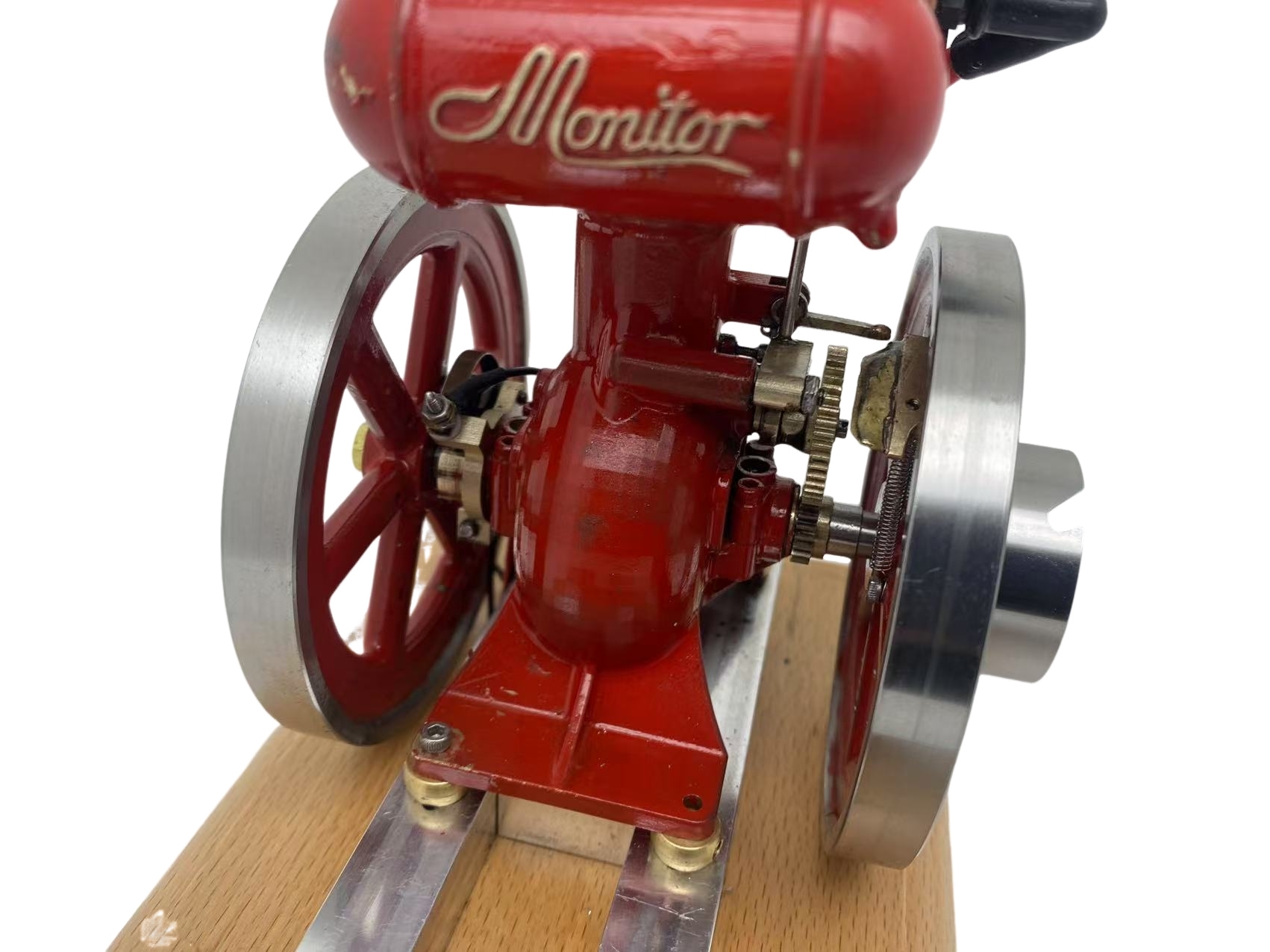

Ball Top Monitor Hit and Miss Engine B01

1, it is a water-cooled structure, the cylinder is added with a lubricating cup,

2, the crankshaft is added with an oil passage, which can enter the center of the crankshaft through the oil cup at one end, and the oil can lubricate the connecting rod head.

3, engine design new mechanical ignition device.

4, the engine uses a solid wood bracket, with a wooden box, the igniter and the battery are installed in the wooden box.

5.  We will deliver the goods before June 30th.

6.  If the sales effect is acceptable, we will produce the assembled version.

.Material: Brass + Aluminum Alloy + Wood

.Displacement: 3.6cc

.Bore Diameter: 16 mm

.Stroke: 19mm

.Speed: 300-3000 rpm

.Cooling Method: Water Cooling

.Lubrication Method: Channel Lubrication

.Starting Method: Hand Start / Drill Start

.Ignition Method:  mechanical ignition

.Spark Plug Type: 3/16-40 British Standard Thread Spark Plug

.Fuel Type: 95# and above gasoline

.Oil Type: 2T/4T Mixed Oil

.Starting Power: 1.5V AA Battery *1 (Not Included)

.Product Weight: 1600g

.Product Dimensions: 20.4 x 10 x 18.4cm
