In the late‑19th / early‑20th century, before power lines reached every barn, a farm’s “grid” was mechanical: a stationary engine on a skid or concrete pad, a wide leather belt, and whatever it needed to drive—pump water, run a feed grinder, turn a separator, or saw wood. The Hit-and-Miss philosophy was brilliantly pragmatic:

• No throttle butterfly chasing a map; instead, a centrifugal governor decides when the engine needs a power stroke (Hit) and when it can safely coast (Miss).
• The result is that iconic cadence: pop–whirr–whirr–pop—a rhythm generations of farmers could diagnose by ear.

The B02 distills that era into a desktop-scale artifact you can actually run: exposed flywheel, visible reciprocating motion, and an intermittent firing beat that explains itself as it runs.

On paper, “real gasoline engine” sounds high-maintenance. The B02 reduces friction (literally and figuratively) by sticking to old-school systems with low part count:

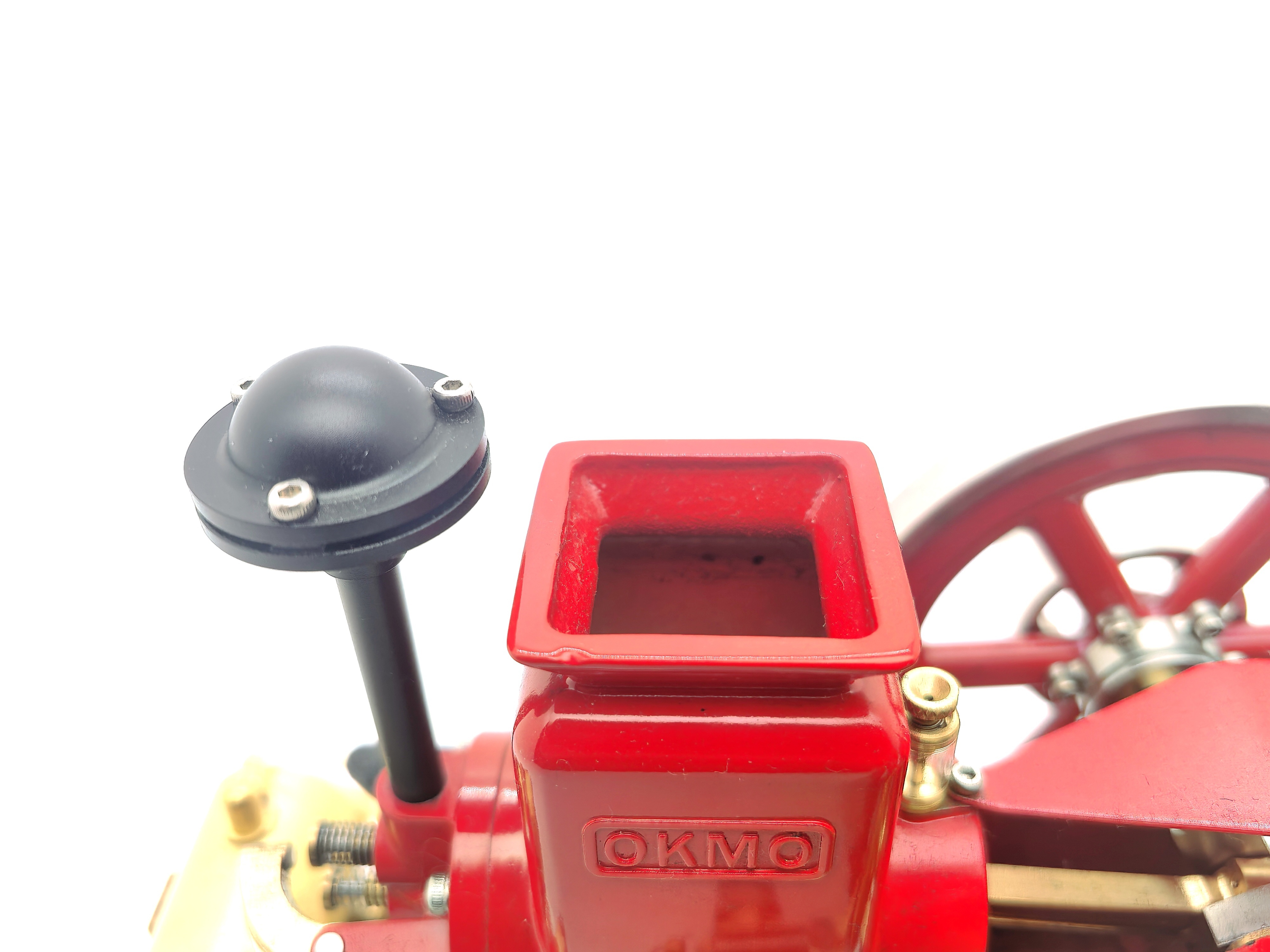

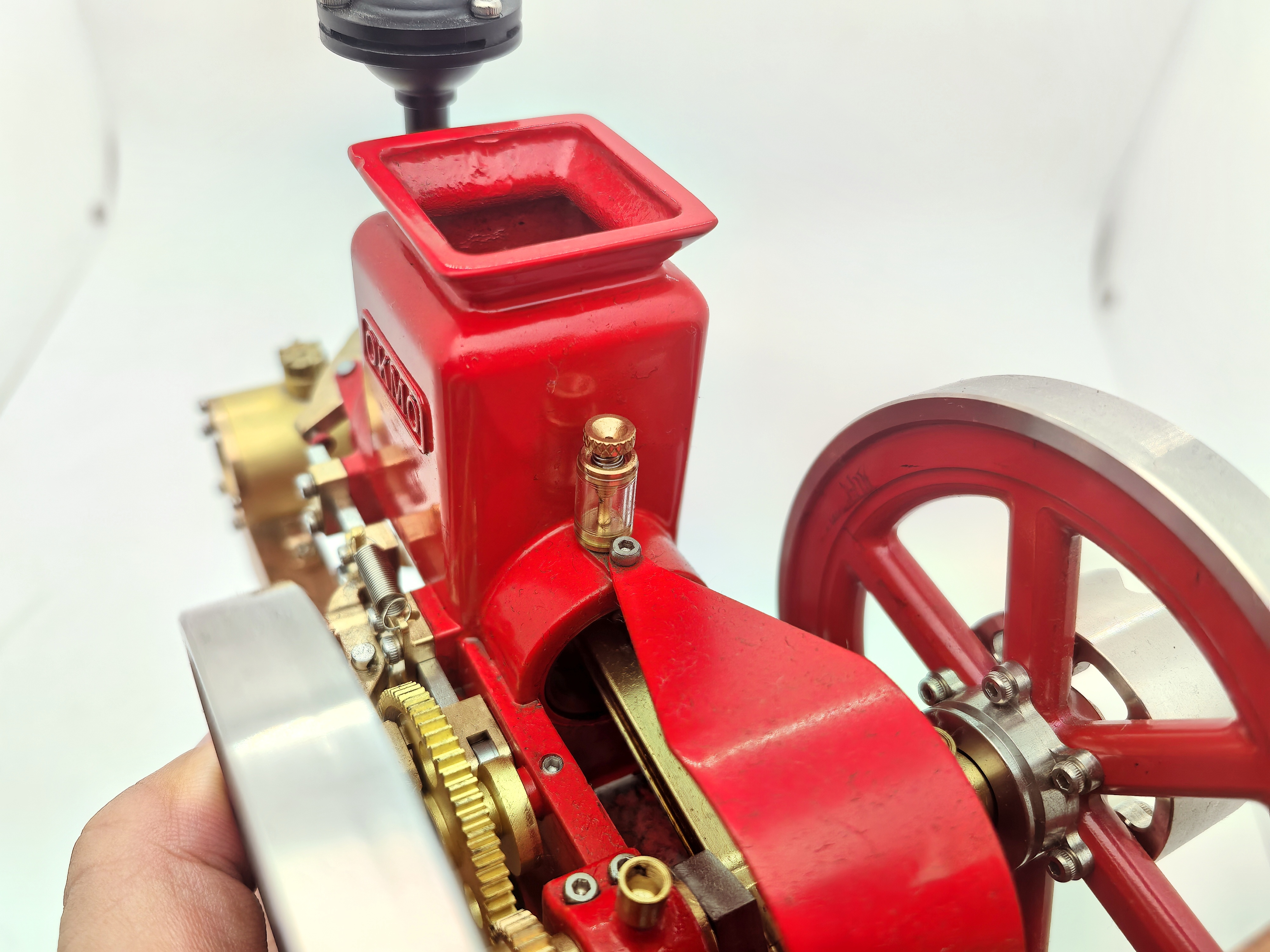

• Evaporative water-cooling: no water pump, no radiator circuit to leak—heat leaves via evaporation from the water jacket/surface system, so your maintenance focus stays on fill level + post-run drainage.
• Mixed-oil splash lubrication: rather than a pressurized oil system with filter/pump/strainer, the B02’s lubrication thinking is “keep the mix right, keep moving parts bathed,” which means fewer hidden failure points and quicker routine checks.
• Mechanical contact control ignition: ;the ignition is mechanical/contact-style, with a 3/16‑40 British thread spark plug you can inspect, clean and gap like a traditional engine.

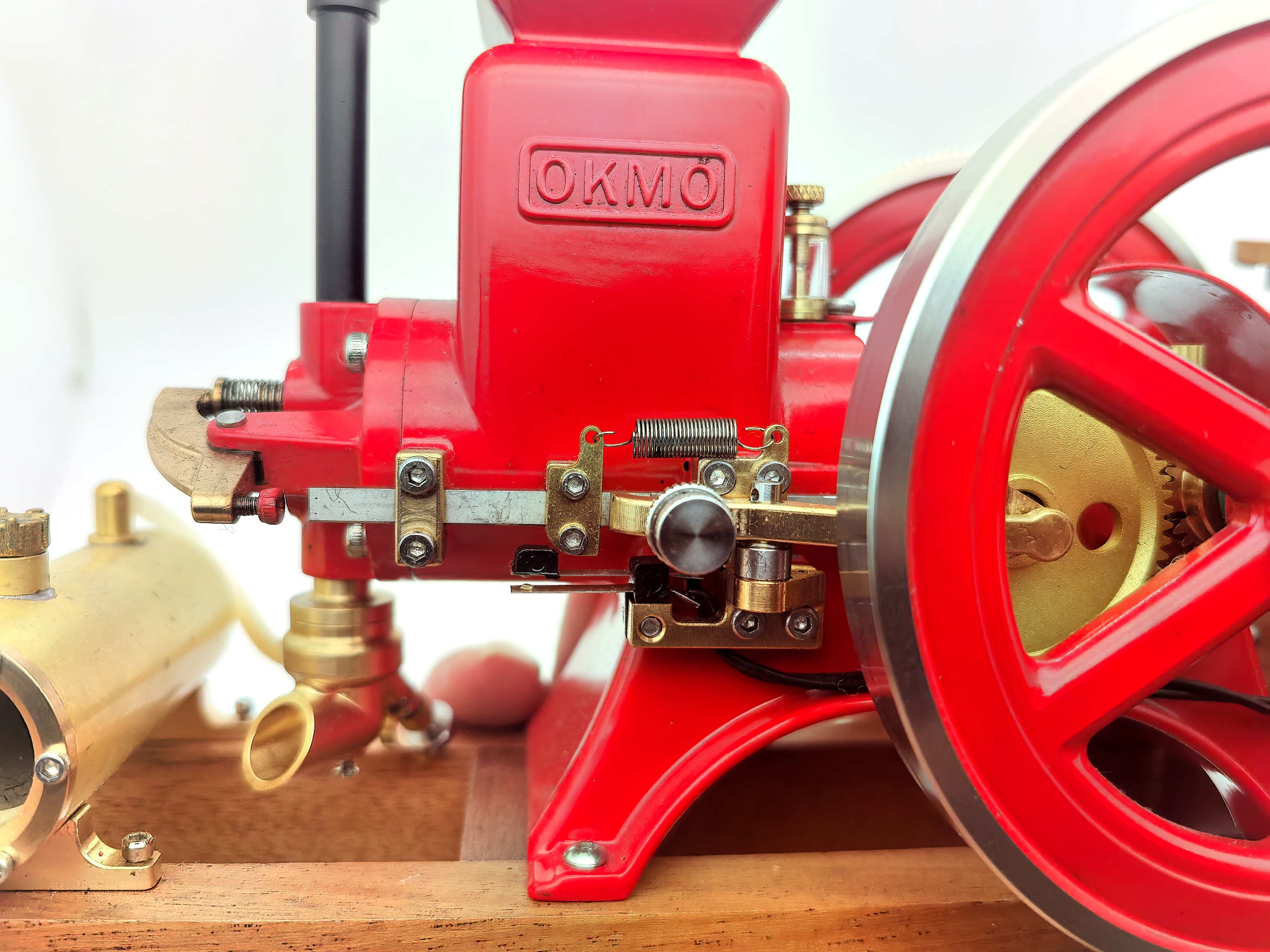

• Horizontal single-cylinder layout: long-stroke motion is easy to read by eye, and the whole valve/linkage area stays accessible for light cleaning and observation.

1. Intake: piston draws in fuel mixture as the valve train opens at the right moment.
2. Compression: both valves close; mixture compresses.
3. Power (the “Hit”): when the governor says speed is low enough, the system allows a normal compression/ignition event → power stroke drives the flywheel.
4. Exhaust / Coast (the “Miss” logic): when flywheel speed is high enough, the governor fusses with valve behavior so the next cycle misses a firing event—flywheel carries the load until it slows, then another Hit arrives.

You see it in the flywheel cadence; you hear it in the spacing between pops; and because the mechanism is exposed, you can point to what’s doing what—which is exactly why this model works so well as a teaching/demo piece.

Every run session (pre / post)

• Check & top up the water jacket before heat builds; after running, let it cool and drain/empty if you won’t run again soon (helps prevent mineral buildup and corrosion).
• Use Gasoline 92# or above; follow the brand’s guidance on oil mixing / lubrication method and keep ratios consistent.
• Inspect the 3/16‑40 spark plug for carbon/fouling; wipe/clean gently and confirm snug seating (do not over-torque on small-scale threads).

Periodic (every several runs)

• Wipe down oily mist residue around breather/ joints with a lint-free cloth.
• Confirm battery-box contacts are clean; use a fresh 1.5V AA when the spark feels weak.
• If the engine sits for weeks, consider clearing the fuel line so stale mix doesn’t gum passages.

Because the B02 avoids complex electronics and pumped cooling loops, “maintenance” mostly means cleanliness, correct fuel/oil, water management, and spark health—which is why owners describe these as satisfying to “fuss with,” not stressful to own.

1. Unbox and confirm Engine (with spark plug installed), Battery Box, Mini Fuel Tank, Oil Pipe, Wood Stand, Manual are present.


2. Mount/seat the engine on the supplied wooden stand as shown in the manual; place everything on a stable, heat-tolerant surface away from flammables.
3. Fill water (if using the cooling jacket) to the recommended level—do not overfill; plan to drain after run.
4. 92#+, correct oil per lubrication method, route the oil pipe / fuel line securely, and connect the battery box (AA 1.5V, not included).
5. Prime as instructed, set the engine at top-dead-center if needed for initial swing, and use manual flip / drill-assisted start per the manual’s safe procedure.

Safety note (worth keeping visible on the page): this is a functioning internal-combustion model—run in a ventilated area, keep hair/hands/curtains clear of the flywheel, and treat hot surfaces & exhaust path seriously. Age recommendation: 16+.

• Collectors & vintage-machinery fans: a compact “stationary-engine” silhouette with real farm-era DNA.
• STEM / shop-class demos: four-stroke timing, governor logic, and ignition you can actually point at.
• Office / studio / man-cave desk piece: the B02’s horizontal stance (25.5×11×13cm) reads “machine” without dominating the room.

• Engine (including spark plug) ×1
• Battery Box ×1
• Mini Fuel Tank ×1
• Oil Pipe ×1
• Stand (wood base) ×1
• Manual ×1
