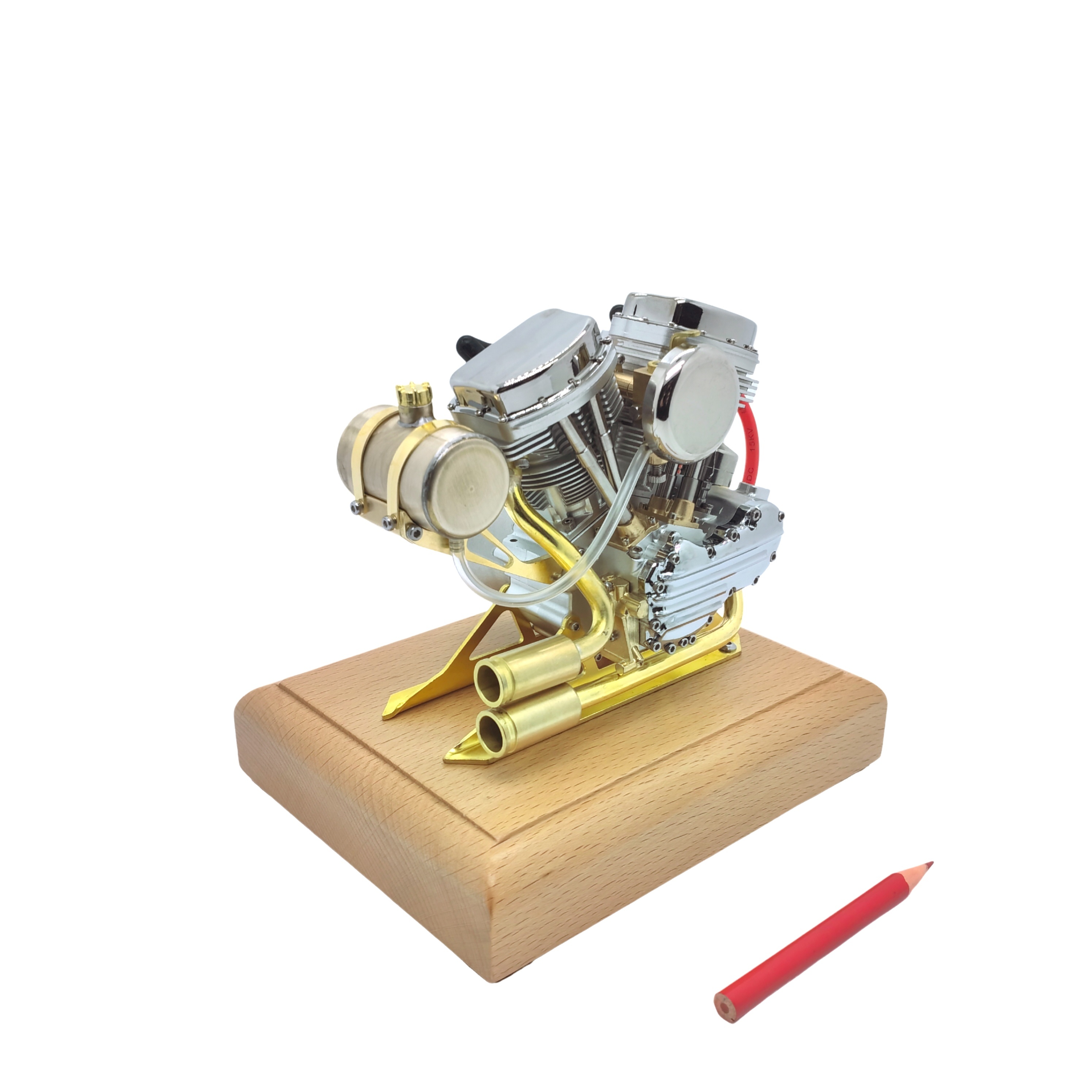

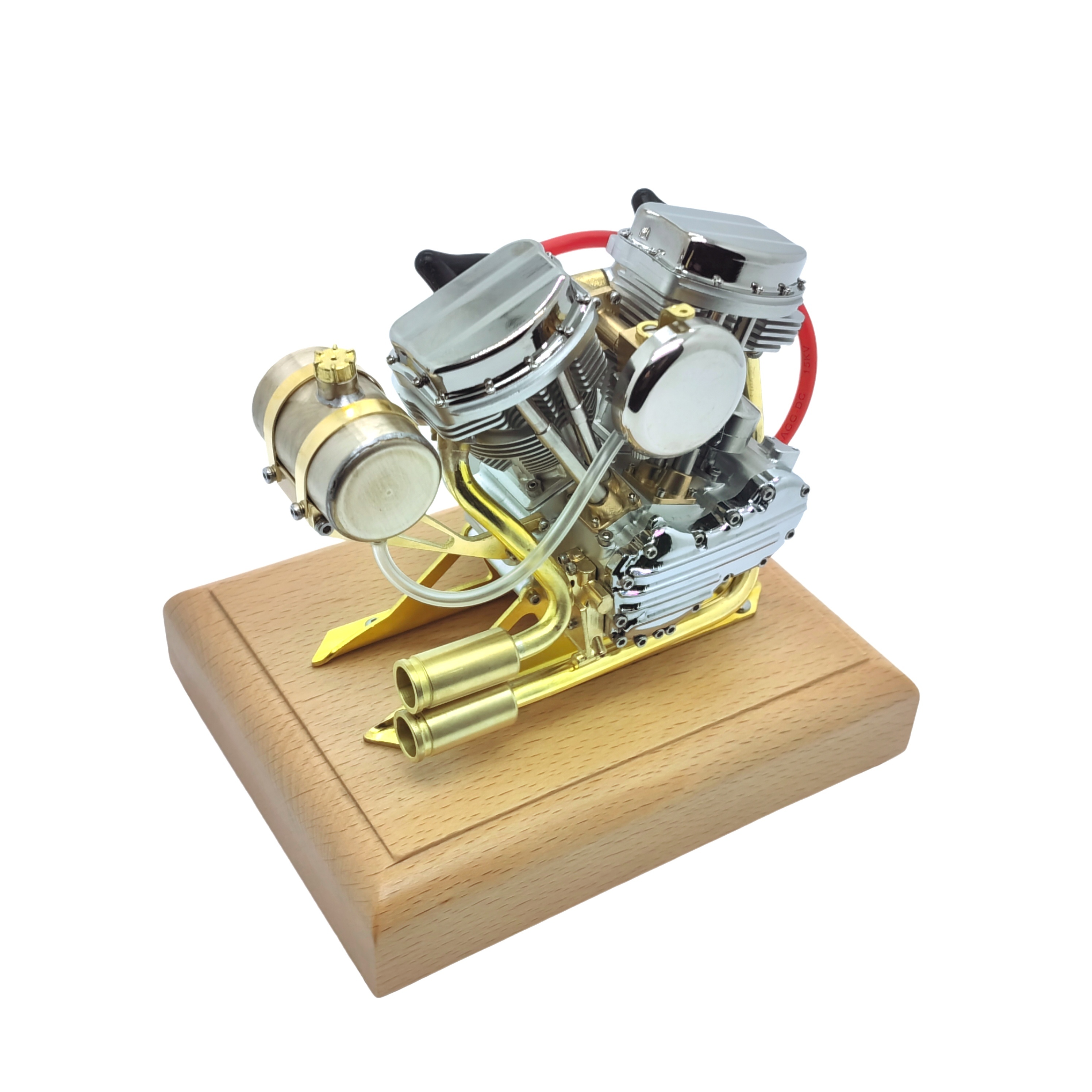

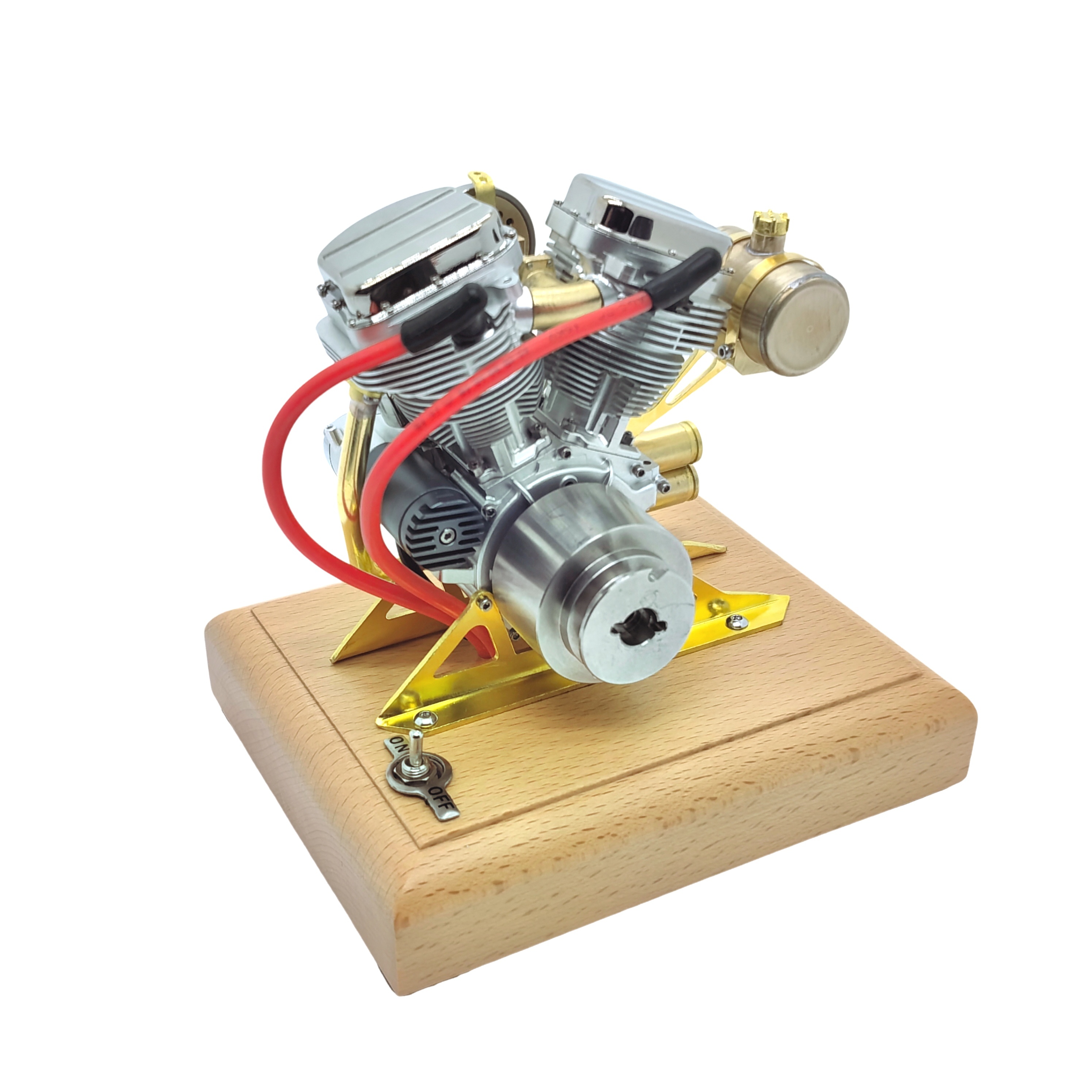

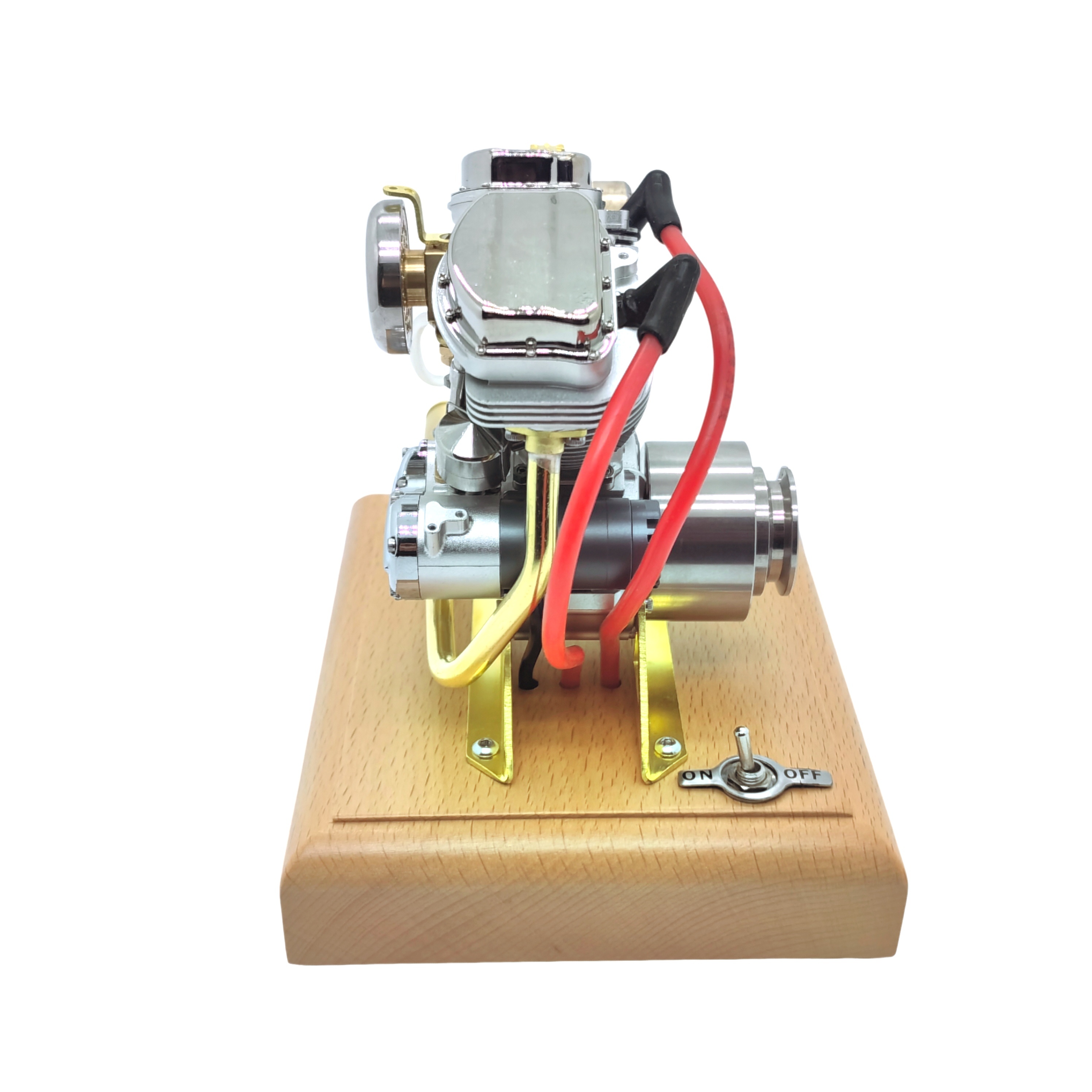

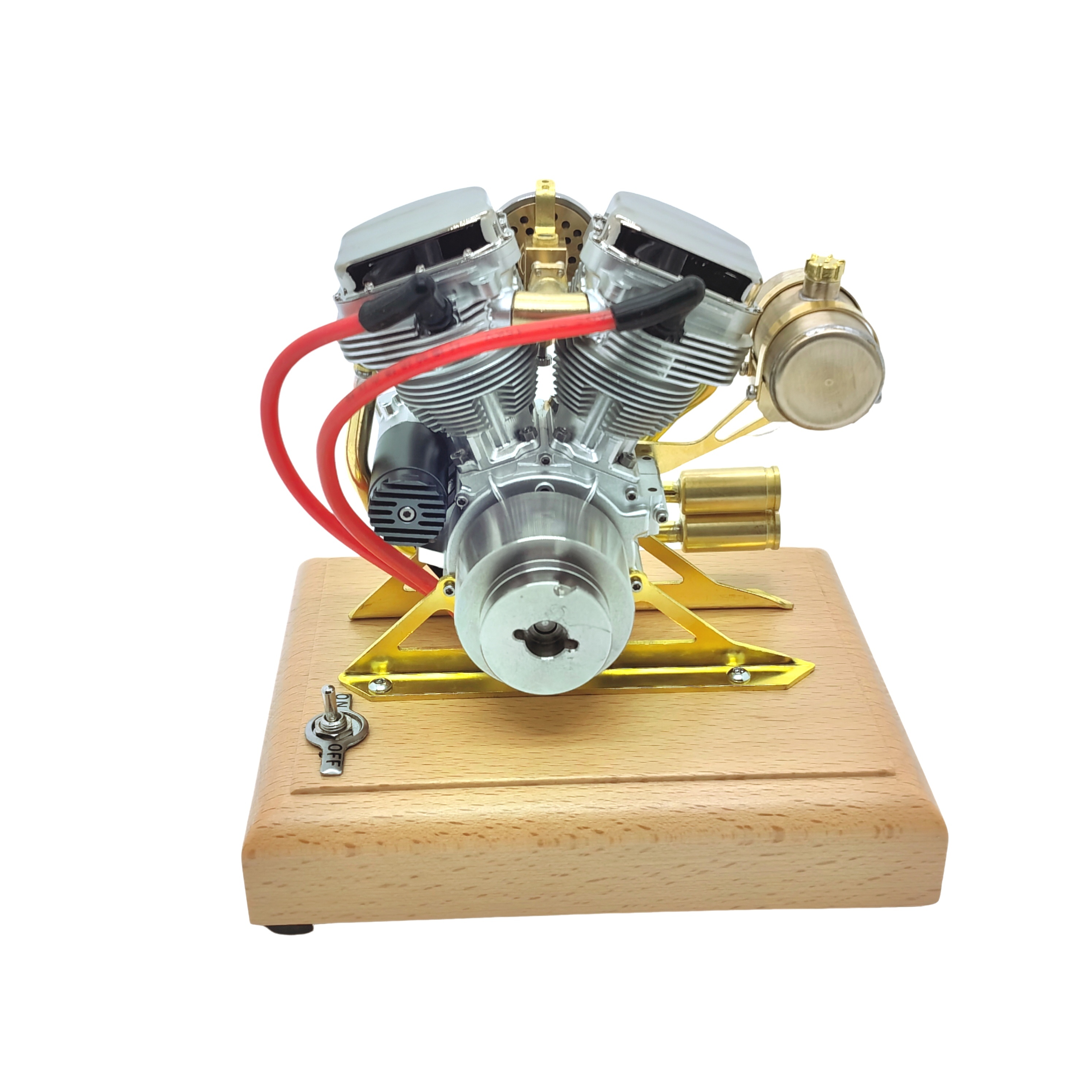

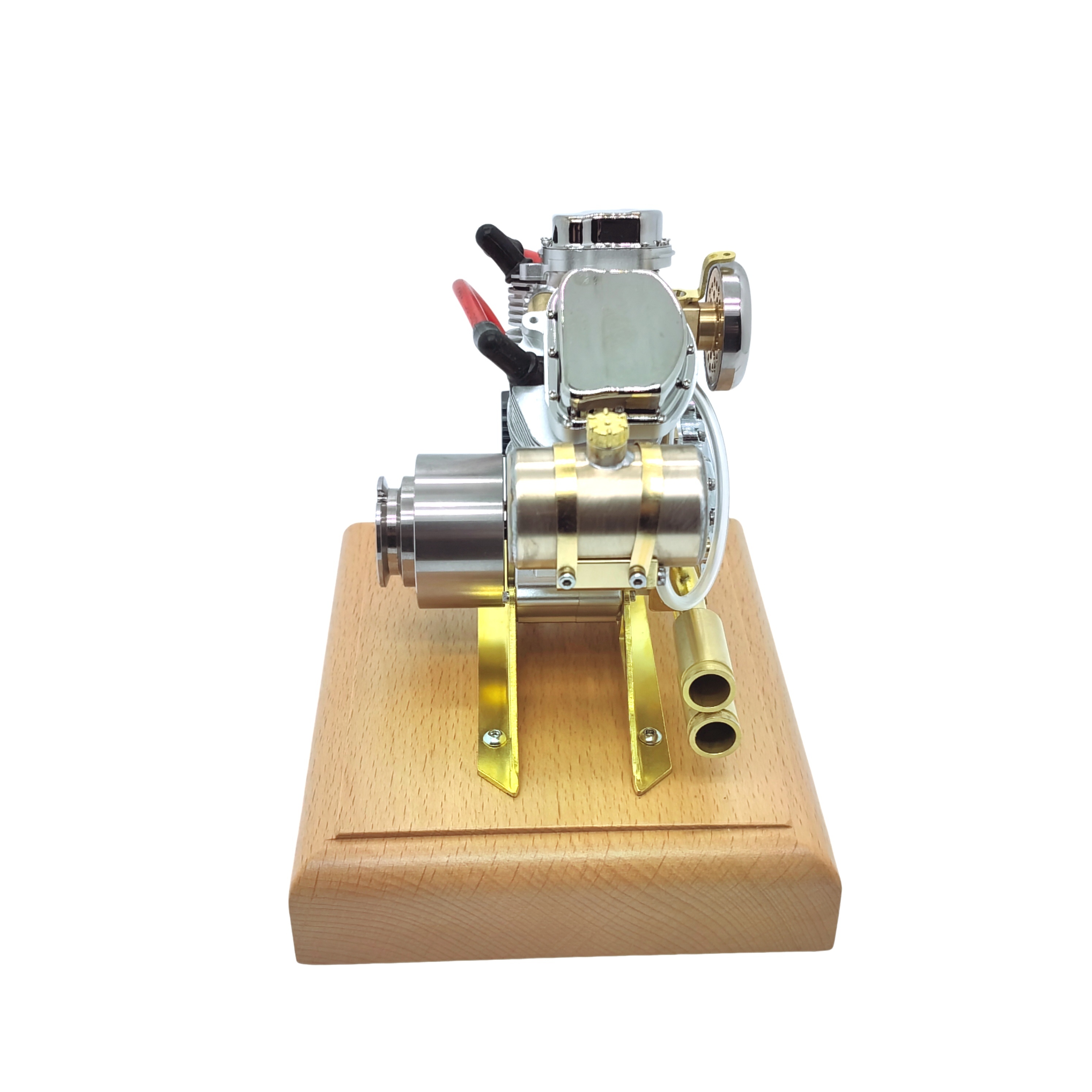

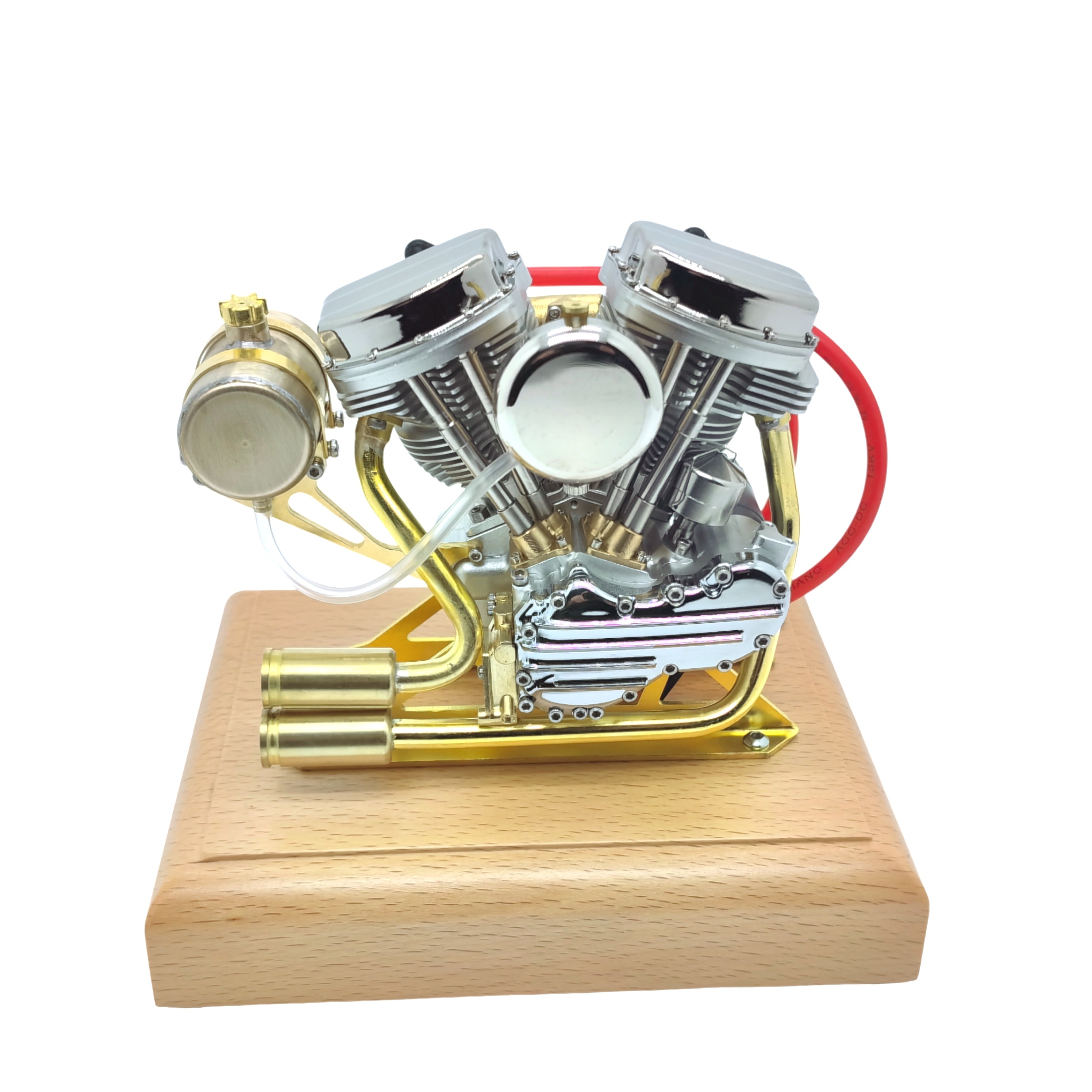

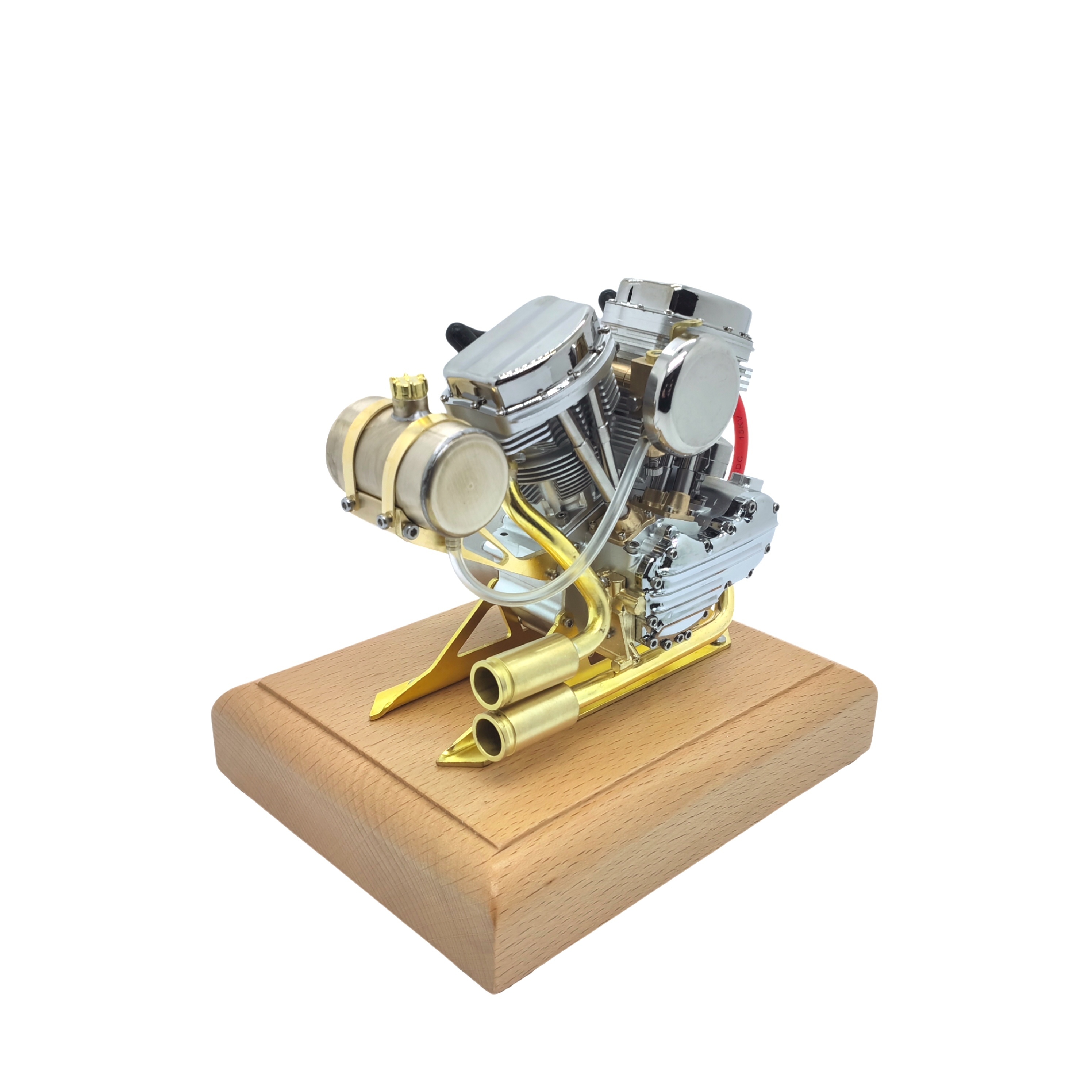

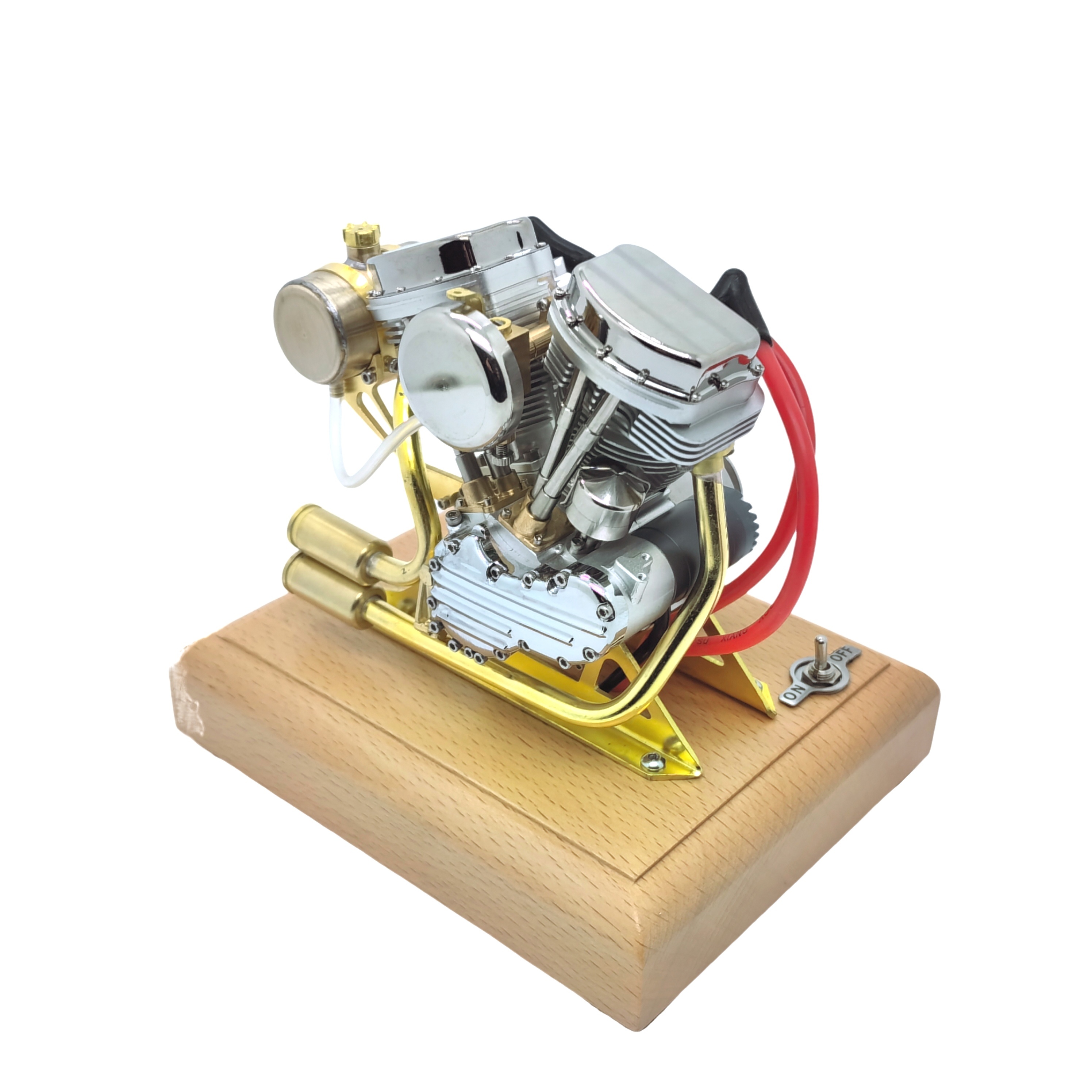

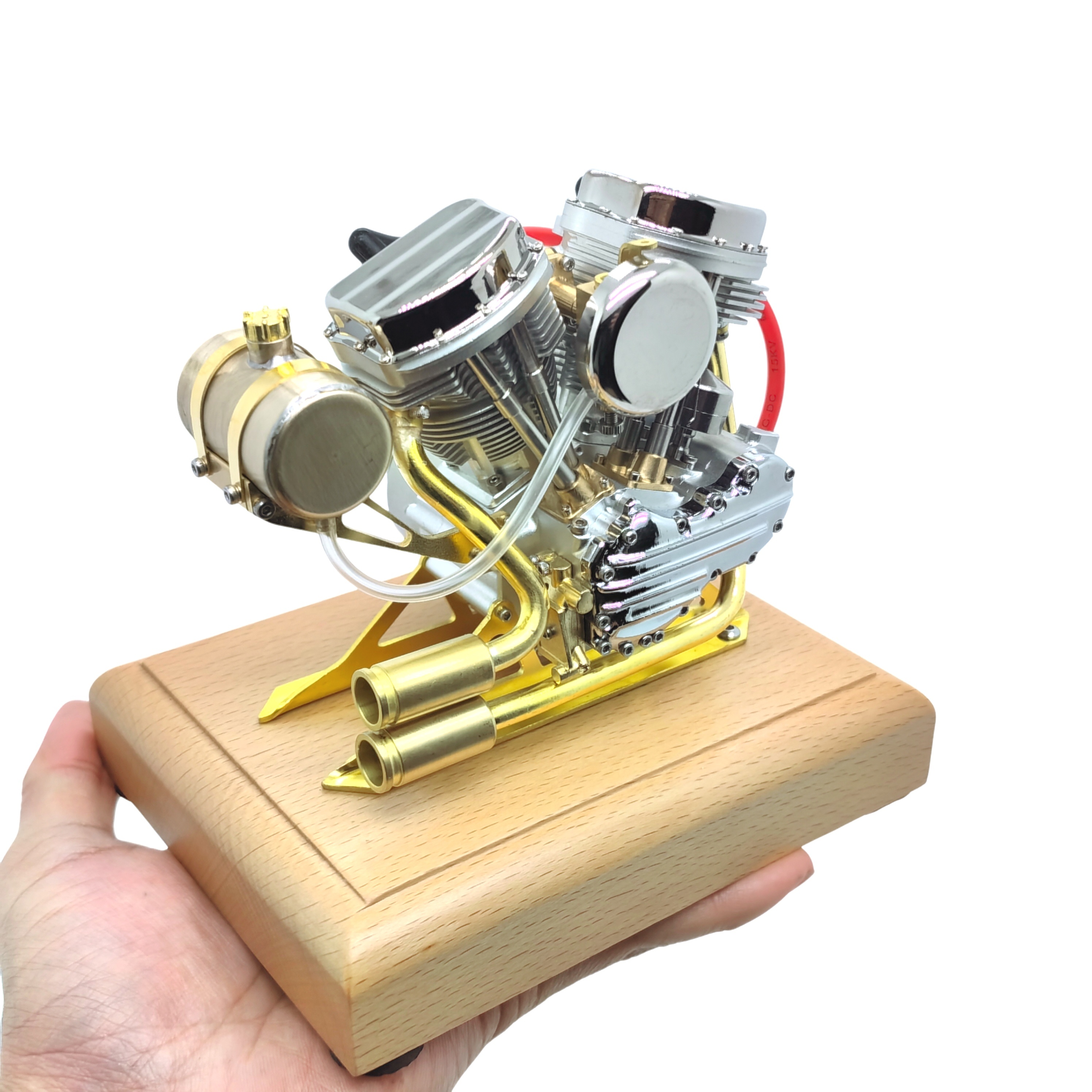

OKMO R30 Harley Davidson Pan Head V Twin Engine Model Four-stroke Gasoline Engine Internal Combustion Engine Model

Features:

.Based on the V-twin double-cylinder Panhead motorcycle engine in the 1970s, the miniature gasoline engine model embodies the spirit of different ages in a wonderful way.

.Designed with classic body lines and cold-cooling structure, the retro machine restores a host of authentic engine details, including a new carburetor and lift throttle. This is one of the most complex engines we have produced.

.Each part of the engine was carefully designed, processed as well as made of brass and stainless steel, working in conjunction with a wooden base for easy display&control and stable operation.

.Built with start and ignition equipment, the engine is ready to run and friendly to novice model enthusiasts. When running, you will satisfy and marvel at its operation.

.As a coveted collection, the engine model is worth showing and playing, suitable for personal use and a high-end gift to friends and families at major festivals.

.Age Recommendation: 16+

Warm Tips:

1. If the engine is failure to start normally under the normal ignition and cylinder compression, it is likely that the carburetor needle will need to be adjusted.

2. After tightening the main oil needle on the carburetor, loosen 1/4 turn and start the flywheel to make the mixture ratio of gasoline and air reach the normal working mixture ratio after several times.

3. Turn off the power switch when the machine stops.

Know More:

.Brand: OKMO

.Item No: R30

.Material: Brass + Stainless Steel

.Color: Brass + Silver

.Scale: 1/5

.Form: Ready to Run

.Type: Double-Cylinder Four-Stroke Gasoline Engine

.Displacement: 4.2CC

.Cylinder Diameter: 13mm

.Stroke: 16mm

.Cooling Mode: Air Cooling

.Starting Mode: Manual/Electronic Drill Starting

.Ignition Method: CDI Electronic Igniter

.Spark Plug Type: 3/16-40 Thread Spark Plug

.Lubrication Method: Mix/Splash Lubrication (Gasoline/Engine Oil =25/1)

.Fuel Type: 95# Gasoline

.Engine Oil Type: 2T Engine Oil

.Starting Power: 4.5V AA Batteries*3 (Not Included)

.Engine Dimensions: 120*80*110mm

.Wooden Base Dimensions: 150*120*30mm

.Product Dimensions: 15 x 12 x 14cm

.Product Weight: 1200g

.Package Dimensions: 20 x 20 x 20cm

.Packing: Gift Box

Package List:

1* Engine

1* Electric Drill Connecting Shaft (Starting Rod)

1* Hand Puller

1 Set Spare O-ring

1* Manual
